Briton 377

Finish:

A surface mounted panic exit combination to suit rebated double doors. Compliant to EN1125 standard, it features an anti-thrust device to prevent the vertical rods being forced, and 3 point locking making it ideal for public areas such as shops, schools, hospitals, and cinemas.

Complete kit comprising of Briton 376 vertical panic bolt, 378 rim panic latch and 378DDS double door strike
For rebated double doors only
Designed to satisfy panic and emergency exit applications
For use on double fire & smoke doors 1330mm to 2600mm wide, height 2500mm and door weight 200kg
Tubular steel cross bar and vertical shoots can be cut on-site to suit door width and height
Site reversible - easy to hand on site
Adjustable top and bottom shoots
Three-point locking for extra security
Anti-thrust prevents forced latch retraction
Tested in excess of 200,000 cycles
All versions supplied with fixings and self-adhesive “Push Bar to Open” signage
Options include alarm activation, manual hold-open (dogging) and quiet close pullman latches
378DDS double door strike included
5 year guarantee

UKCA Marked to EN 1125 (1121-CPR-AAA7569)
CE Marked to EN 1125 (2812-CPR-AAA0011)
Certifire Approved (CF5506)
Fire tested to EN 1634-1 on timber doors to achieve a 1 hour fire rating, and 2 hours for metal doors
Environmental Product Declaration in accordance with ISO 14025 and EN 15803

UKCA Certificate

Certifire Certificate

UKCA Declaration of Performance

Environmental Product Declaration

CE Certificate

CE Declaration of Performance

Item Ref:	Description	Finish
377	Push bar panic exit kit for rebated double doors - site reversible	SE

Accessories

370PLTM Pullman Latches

376FFKP Flush Face Keeper Plate

376/1021 Dogging End Box

9260 Digital Code Lock

380/1011 Alarm End Box

(not certified for MM/IMM doorsets)

1413.LE Outside Access Device Lever Operated

376ELTS Extra Long Shoot Bolts

1413.KE Outside Access Device Knob Operated

For use on fire doors up to 2hr timber and 4hr steel (depending on the performance of the associated panic or emergency exit system). Please refer to certification for details.

Fixing Kits

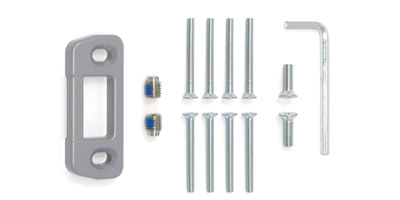

370PLM Exit Latch Fixing Kit

(Metal Doors)

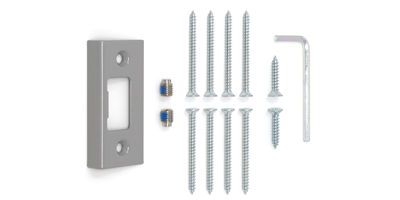

370PLT Exit Latch Fixing Kit

(Timber Doors)

370PT Panic Bolt Fixing Kit

(Timber Doors)

370PM Panic Bolt Fixing Kit

(Metal Doors)

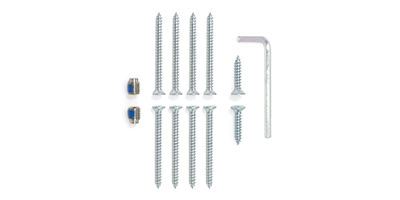

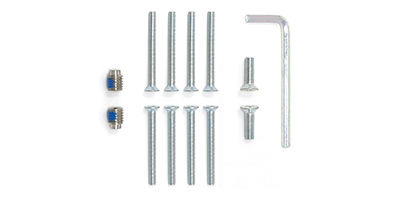

All Briton exit devices are supplied with self-tapping screws suitable for timber and metal doorsets. For customers who prefer machine screws, alternative fixing packs are available.

Screw Packs
