Briton 4800

Finish:

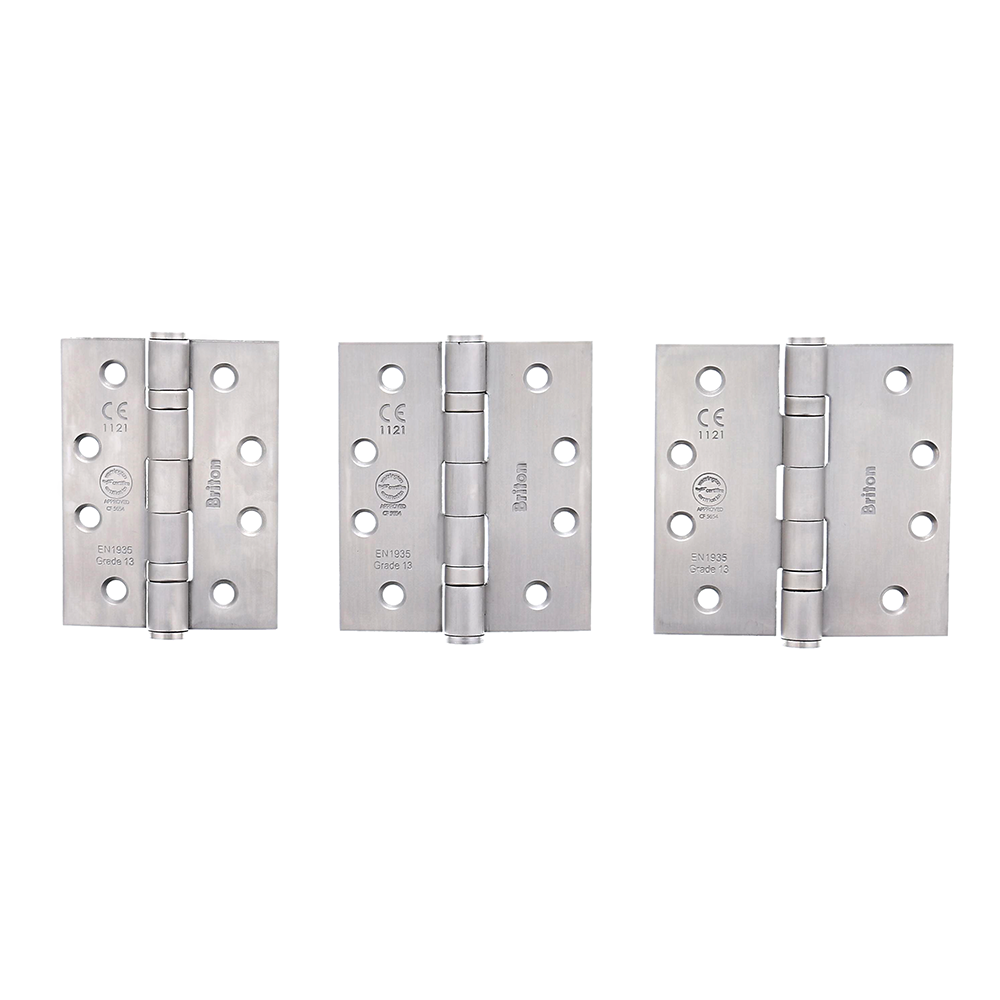

A range of CE Grade 13 high-performance stainless steel ball bearing hinges, suitable for timber and metal doors up to 120kg. Featuring a five-knuckle ball bearing design to minimise friction and enhance durability, each hinge is template drilled for precise and consistent installation.

Five knuckle ball bearing hinges
Suitable for timber and metal doors up to 120kgs
Template drilled for consistency and accuracy
Available in Grade 316 or Grade 04 stainless steel and in satin or polished finish
Also available with machine screws for use with metal doorsets
Options for security dog bolt

IMPORTANT NOTE - Fire door applications

A hinge which is certified for a 1 hour fire door cannot be fitted to a 30 min fire door unless certified as the door

CE Marked to EN 1935 - Grade 13
Classification 4 7 6 1 1 4 0 13
Fire tested to EN 1634 on timber doors to achieve a 2 hour fire rating
Environmental Product Declaration in accordance with ISO 14025 and EN 15804

CE Certificate

Certifire Certificate

Item Ref:	Size	Dog Bolt	Material Grade	Finish
4801	102 x 76 x 3		304	SS; PS
4802	102 x 89 x 3		304	SS; PS
4803	102 x 102 x 3		304	SS; PS
4801.316	102 x 76 x 3		316	SS; PS
4802.316	102 x 89 x 3		316	SS; PS
4803.316	102 x 102 x 3		316	SS; PS
4811	102 x 76 x 3	Yes	304	SS; PS
4813	102 x 102 x 3	Yes	304	SS; PS
4811.316	102 x 76 x 3	Yes	316	SS; PS
4813.316	102 x 102 x 3	Yes	316	SS; PS
