Briton 376

Finish:

A surface mounted push bar panic exit device with vertical bolts operating top and bottom of the door. Ideal for public areas where additional security is required.

Suitable for all single doors and in combination on non-rebated double doors with Briton 376 or 379 panic exits. For rebated double doors combine with Briton 378 panic latch and Briton 378DDS double door strike (Briton 377).
Designed to satisfy panic and emergency exit applications
For use on fire & smoke doors 665mm to 1300mm wide, height 2500mm and door weight 200kg
Site reversible - easy to hand on site
Two-point locking for extra security
Anti-thrust device prevents forced latch retraction
Adjustable top & bottom shoots
Tubular steel cross bar and shoots can be cut on-site to suit door width and height
Tested in excess of 200,000 cycles
All versions supplied with fixings and self-adhesive “Push Bar to Open” signage
Options include alarm activation, manual hold-open (dogging) and quiet close pullman latches
5 year guarantee

UKCA Marked to EN 1125 (1121-CPR-AAA7569)
CE Marked to EN 1125 (2812-CPR-AAA0011)
Certifire Approved (CF5506)
Fire tested to EN 1634-1 on timber doors to achieve a 2 hour fire rating (1 hour timber when used with Outside Access Devices), and 4 hours for metal doors
Environmental Product Declaration in accordance with ISO 14025 and EN 15803

UKCA Certificate

Certifire Certificate

UKCA Declaration of Performance

Environmental Product Declaration

CE Certificate EN 1125

CE Declaration of Performance

Item Ref:	Description	Finish
376	Push bar vertical panic bolt	SE
376M	Push bar vertical panic bolt with strike plate and fixings to suit metal doors	SE

Accessories

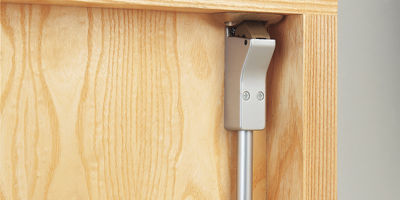

370PLTM Pullman Latches

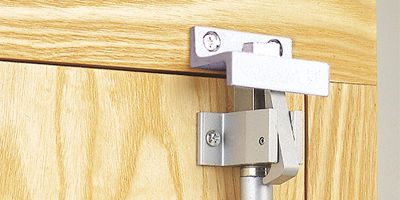

376FFKP Flush Face Keeper Plate

1413.LE Outside Access Device Lever Operated

376/1021 Dogging End Box

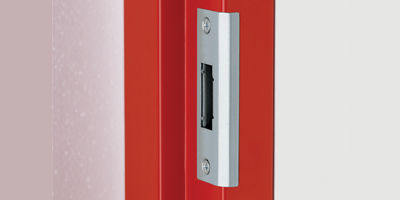

376MDS Metal Door Box Strike

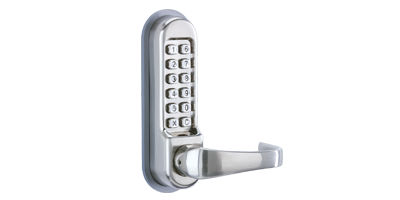

9260 Digital Code Lock

380/1011 Alarm End Box

(not certified for MM/IMM doorsets)

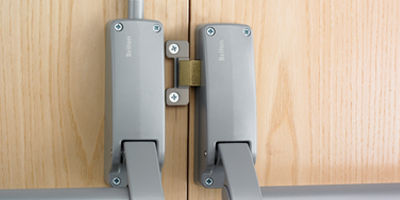

378DDS Double Door Strike

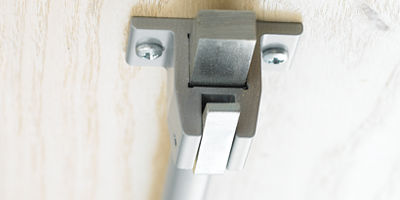

376ELTS Extra Long Shoot Bolts

1413.KE Outside Access Device Knob Operated

For use on fire doors up to 2hr timber and 4hr steel (depending on the performance of the associated panic or emergency exit system). Please refer to certification for details.

Fixing Kits

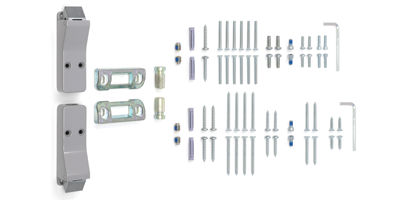

370PLTM Pullman Fixing Kit

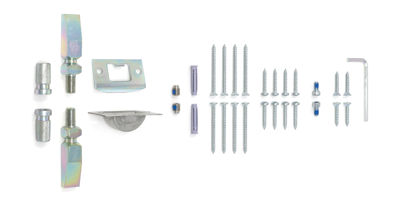

370PT Panic Bolt Fixing Kit

(Timber Doors)

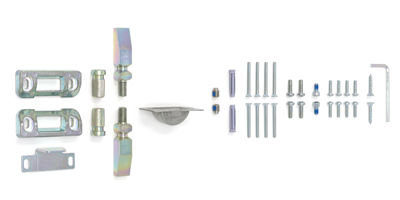

370PM Panic Bolt Fixing Kit

(Metal Doors)

All Briton exit devices are supplied with self-tapping screws suitable for timber and metal doorsets. For customers who prefer machine screws, alternative fixing packs are available.

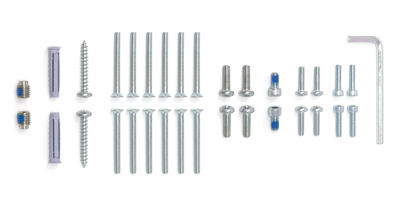

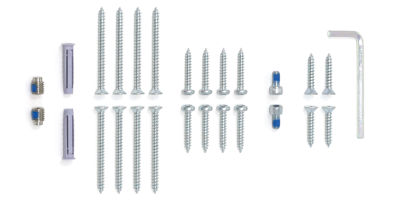

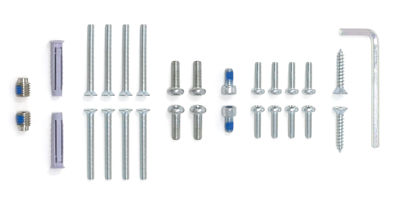

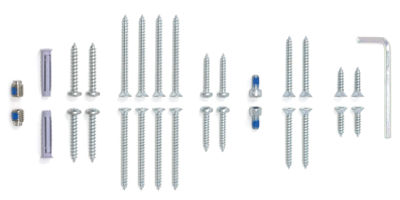

Screw Packs
